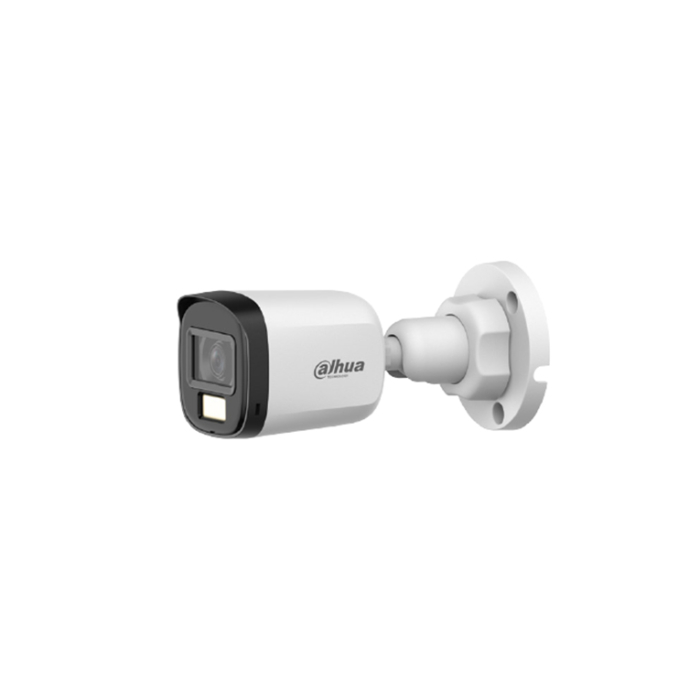

Technical Specification Camera Image Sensor 2 MP CMOS Max. Resolution 1920 (H) × 1080 (V) Scanning System Progressive Electronic Shutter Speed PAL: 1/25 s–1/100,000 s; NTSC: 1/30 s–1/100,000 s Min. Illumination 0.02 lux@F2.0 (Color, 30 IRE); 0.002 lux@F2.0 (B/W, 30 IRE); 0 lux (Illuminator on) S/N Ratio >65 dB Illumination Distance IR: 30 m (98.43 ft); Warm light: 20 m (65.62 ft) Illuminator On/Off Control Auto;Manual Illuminator Number 2 (Warm light);2 (IR light) Angle Adjustment Pan: 0°–360° Tilt: 0°–90° Rotation: 0°–360° Lens Lens Type Fixed-focal Lens Mount M12 Focal Length 2.8 mm; 3.6 mm; 6 mm Max. Aperture F2.0 Field of View 2.8 mm: H: 100°; V: 54°; D: 117° 3.6 mm: H: 80°; V: 43°; D: 94° 6 mm: H: 43°; V: 24°; D: 50° Iris Control Fixed Close Focus Distance 2.8 mm: 0.5 m (1.64 ft) 3.6 mm: 0.8 m (2.62 ft) 6 mm: 2.4 m (7.87 ft) DORI Distance Lens Detect Observe Recognize Identify 2.8 mm 44.7 m (146.65 ft) 17.9 m (58.73 ft) 8.9 m (29.20 ft) 4.5 m (14.76 ft) 3.6 mm 55.0 m (180.45 ft) 22.0 m (72.18 ft) 11.0 m (36.09 ft) 5.5 m (18.04 ft) 6 mm 102.9 m (337.60 ft) 41.1 m (134.84 ft) 20.6 m (67.59 ft) 10.3 m (33.79 ft) Video Video Frame Rate CVI: PAL: 1080p@25 fps NTSC: 1080p@30 fps AHD: PAL: 1080p@25 fps NTSC: 1080p@30 fps TVI: PAL: 1080p@25 fps NTSC: 1080p@30 fps CVBS: PAL: 960H NTSC: 960H Resolution 1080p (1920 × 1080); 960H (960 × 576/960 × 480) Day/Night Auto(ICR)/Color/B/W BLC BLC; HLC; DWDR WDR DWDR White Balance Auto;Area white balance Gain Control Auto;Manual Noise Reduction 2D NR Illumination Mode Smart IR&WL; WL Mode; IR Mode Mirror Yes Privacy Masking Off/On (8 areas, rectangle) Certification Certifications CE-LVD: EN 62368-1; CE-EMC: EN 55032; EN 55035 Port Video Output Video output choices of CVI/TVI/AHD/CVBS by one BNC port Power Power Supply 12 VDC ± 30% Power Consumption Max 3.3 W (12 VDC, LED on) Environment Operating Temperature –40 °C to +60 °C (–40 °F to +140 °F) Operating Humidity <95% (RH), non-condensing Storage Temperature –40 °C to +60 °C (–40 °F to +140 °F) Storage Humidity <95% (RH), non-condensing Protection IP67 Anti-corrosion Level Basic Protection Structure Casing Material Plastic Product Dimensions 146.1 mm × 70.0 mm × 69.8 mm (5.75" × 2.76" × 2.75") Net Weight 0.15 kg (0.33 lb) Gross Weight 0.23 kg (0.51 lb) Installation Wall mount; ceiling mount; vertical pole mount Ordering Information Type Model Description 2MP Camera DH-HAC-B1A21P-U-IL 2MP Smart Dual Light HDCVI Fixed-focal Bullet Camera, PAL DH-HAC-B1A21N-U-IL 2MP Smart Dual Light HDCVI Fixed-focal Bullet Camera, NTSC Accessories (Optional) PFA134 Junction Box PFA130-E Water-proof Junction Box PFA152-E Pole Mount Bracket PFM321D 12V 1A Power Adapter PFM800-E Passive HDCVI Balun PFM904 Integrated Mount Tester
