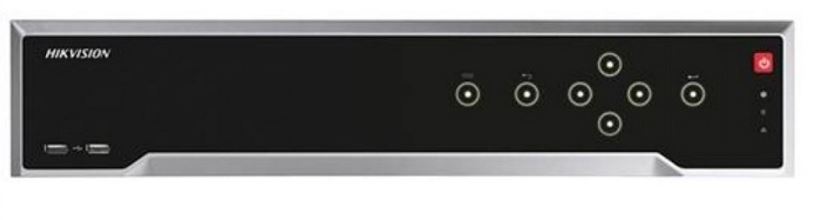

64-ch 2U 4K AcuSense NVR H.265+/H.265/H.264+/H.264 video formats Intelligent analytics based on deep learning algorithm Up to 4-ch perimeter protection Up to 1-ch facial recognition for video stream, or up to 4-ch facial recognition for face picture Up to 64-ch IP camera inputs Up to 16-ch 1080p decoding capability Up to 320 Mbps incoming bandwidth Intelligent Analytics AI By NVR N/A AI By Camera N/A Engine N/A Facial Recognition Facial Detection And Analytics Face picture comparison, human face capture, face picture search Face Picture Library Up to 16 face picture libraries, with up to 10,000 face pictures in total (each picture ? 15KB, total capacity ? 150 MB) Facial Detection And Analytics Performance 1-ch human face capture (HD network camera, up to 8 MP, H.264/H.265) Face Picture Comparison 4-ch face picture comparison alarm Motion Detection 2.0 Human/Vehicle Analysis 32-ch By NVR N/A By Camera N/A Perimeter Protection Human/Vehicle Analysis Up to 4-ch 2 MP (H.264/H.265) video analysis for human and vehicle recognition; Up to 12 rules in total;Up to 4-ch 2 MP (H.264/H.265) video analysis for human and vehicle recognition; Up to 12 rules in total By NVR N/A By Camera N/A ANPR By Camera N/A Vehicle Attributes N/A Plate Attributes N/A Video And Audio IP Video Input 64-ch Up to 12 MP resolution *: 32 MP and 24 MP is only available for channel 1 when ultra HD resolution mode is enabled. Incoming Bandwidth 320 Mbps Outgoing Bandwidth 256 Mbps HDMI 1 Output 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz HDMI 2 Output 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz VGA 1 Output 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz VGA 2 Output N/A Video Output Mode HDMI1/VGA simultaneous output, HDMI2/VGA independent output CVBS Output N/A Audio Output N/A Two-Way Audio 1-ch, RCA (2.0 Vp-p, 1 K?) Decoding Recording Resolution N/A Live View Window Division N/A Aux Port Window Division N/A Dual-Stream Recording N/A Audio Compression N/A Decoding Format H.265+/H.265/H.264+/H.264/MPEG4 Decoding Capability 16-ch@1080p (30 fps) Synchronous Playback 64-ch Stream Type Video, Video & Audio Network API N/A Compatible Browser N/A Network Protocol TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS Remote Connection 128 Network Interface 2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface RAID RAID Type RAID0, RAID1, RAID5, RAID6, RAID10 Auxiliary Interface SATA 8 SATA interfaces ESATA 1 eSATA interface Capacity Up to 10 TB capacity for each disk Serial Interface RS-485 (full-duplex), RS-232, Keyboard USB Interface Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0;Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0 Alarm In/Out 16/8 Ctrl 12V NA DC 12V NA General GUI Language N/A Power Supply 100 to 240 VAC, 50 to 60 Hz Consumption ? 30 W Working Temperature -10 °C to 55 °C (14 °F to 131 °F) Working Humidity 10% to 90% Chassis 2U chassis Dimension (W × D × H) 442 × 459 × 92 mm (17.4"× 18" × 3.6") Weight ? 8.7 kg (19.2 lb.) Certification FCC Part 15 Subpart B, ANSI C63.4-2014 CE EN 55032:2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4 Obtained Certification CE, FCC, IC
