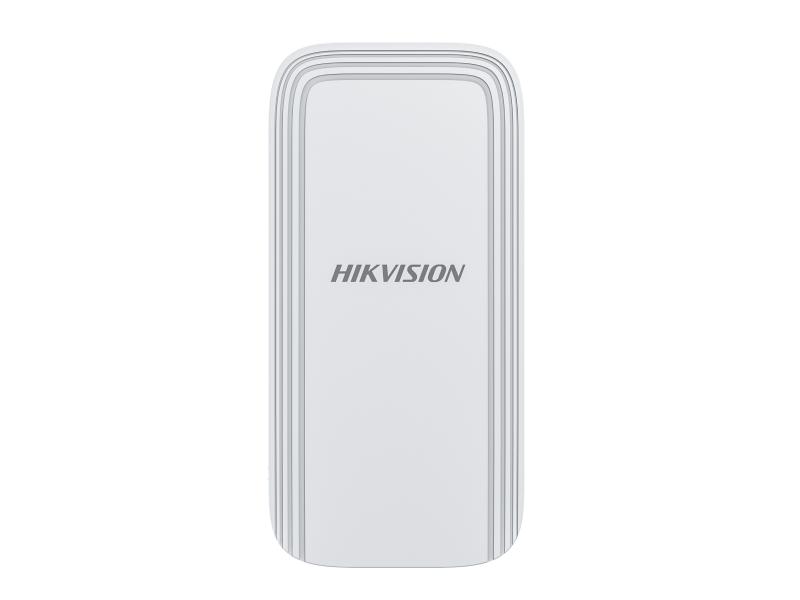

DS-3WF0FC-2N/O 2.4Ghz 300Mbps 1KM Wireless CPE Up to 1 km wireless transmission distance 300 Mbps 802.11n wireless bridge Built-in 7dBi 2 x 2 MIMO antenna Visualized topology management Real-Time alarm push technology General Product Dimensions (W × H × D) 81 mm × 165 mm × 52 mm (3.62'' × 7.36'' × 2.28'') Package Dimensions (W × H × D) 132 mm × 228 mm × 91 mm (5.19" × 8.97" × 3.58") Net Weight 0.19 kg (0.42 lb) Gross Weight 0.49 kg (1.08 lb) Packing List Wireless Bridge × 1,Power Adapter (12 VDC, 1 A) × 1,10/100 Mbps PoE Injector × 1,Binding Tape × 2,Quick Start Guide ×1,Regulatory Compliance and Safety Information × 1 Packing Method Single unit packing Working Temperature -30 °C to 70 °C (-22 °F to 158 °F) Working Humidity 5% to 95% (no condensation) Storage Temperature -40 °C to 80 °C (-40 °F to 176 °F) Storage Humidity 5% to 95% (no condensation) Installation Mode Pole Mounting Ingress Protection IP55 Power Consumption 1.8 W for typical (1-ch 2MP IPC), Max. 4.5 W Wireless Parameter Max. Transmission Rate of Air Interface ? 300 Mbps Wireless Standard IEEE 802.11b/g/n (2 × 2 MIMO 300 Mbps) Working Frequency Band 2400 MHz ~ 2483.5 MHz Transmitting Power 17±2 dBm (Note: Transmitting power may vary with local regulations.) Receiving Sensitivity -87±2 dBm @HT40 MCS0,-68 ± 2 dBm @HT40-MCS7 Antenna Gain 7 dBi Antenna Angle (H) Beamwidth [3 dB] 35° (V) Beamwidth [3 dB] 35° Throughput Rate Point to point: Support up to 8-ch IPC (2MP) in Max. 1 KM distance and Max. 40 Mbps bandwidth,Point to multi-point: Support up to 4-ch IPC (2MP) in Max. 1 KM distance and Max. 20 Mbps bandwidth within 35°±5°, Max. 1 to 4 PTMP connection Hardware Parameter Network Interface 2 × 10/100 Mbps RJ45 ports LED Indicator Power indicator,LAN indicator,Signal intensity indicator SIFIRLA Hardware resetting button Power Supply 12-24 VDC Passive PoE Software Function Application Function TDMA,DFS,TPC,IFM,IPM Channel Width 10/20/40 MHz Channel Selection Auto/manual selection Network Protocol NTP (network time synchronization),SADP (auto search for IP address),HTTPS (web management),SSH (debugging) Security Mode WPA2-PSK Security Mechanism Wireless network name hidden Management Method Web,iVMS-4200,HCP Upgrade Web,iVMS-4200,HCP System Log Syslog,Control center information Approval EMC CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020) Safety CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition)), CE-LVD (EN 62368-1: 2014+A11: 2017),UL (UL 60950-1) Chemistry CE-RoHS (2011/65/EU),WEEE (2012/19/EU),Reach (Regulation (EC) No.1907/2006) Radio EN 301 893,EN 300 440,EN 62311,EN 301 489-3,EN 301 489-17
