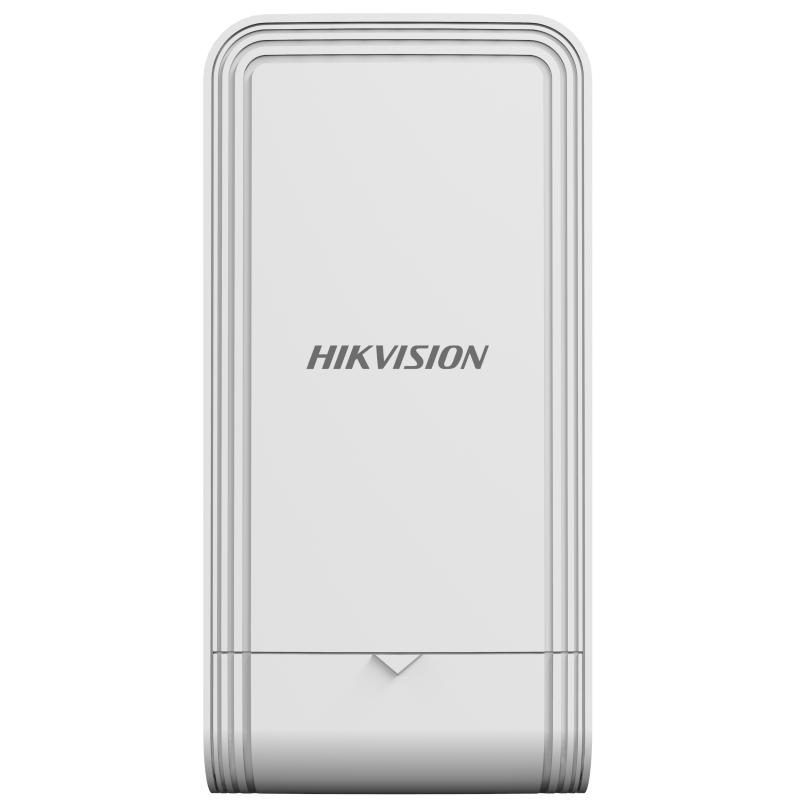

DS-3WF02C-5AC/O 5Ghz 867Mbps 5km Outdoor Wireless CPE All gigabit LAN ports TDMA supported Quick match through DIP switch Visualized topology management Up to 5 km wireless transmission distance General Product Dimensions (W × H × D) 92 mm × 187 mm × 58 mm (3.62'' × 7.36'' × 2.28'') Package Dimensions (W × H × D) 132 mm × 228 mm × 91 mm (5.19" × 8.97" × 3.58") Net Weight 0.307 kg (0.677 lb) Gross Weight 0.807 kg (1.779 lb) Packing List Wireless Bridge × 1,Power Adapter (12 VDC, 1 A) × 1,Binding Tape × 2,Quick Start Guide ×1 Packing Method Single unit packing Working Temperature -30 °C to 70 °C (-22 °F to 158 °F) Working Humidity 5% to 95% (no condensation) Storage Temperature -40 °C to 85 °C (-40 °F to 185 °F) Storage Humidity 5% to 95% (no condensation) Installation Mode Pole Mounting Ingress Protection IP55 Power Consumption 2.65 W for typical (1-ch 2MP IPC), Max. 4.5 W Wireless Parameter Max. Transmission Rate of Air Interface ? 867 Mbps Wireless Standard IEEE 802.11/a/n/ac Working Frequency Band 5150 MHz ~ 5250 MHz,5250 MHz~ 5350 MHz,5470 MHz~ 5725 MHz,5725 MHz~ 5850 MHz Antenna Gain 12 dBi Antenna Angle (H) Beamwidth [3 dB] 35° (V) Beamwidth [3 dB] 35° Transmitting Power 22 dBm (Note: Transmitting power may vary with local regulations.) Receiving Sensitivity -58±2 dBm@AC80-MCS9,-84±2dBm@AC80-MCS0 Throughput Rate Point to point: Support up to 4-ch IPC (2MP) in Max. 5 KM distance and Max. 20 Mbps bandwidth,Point to point: Support up to 40-ch IPC (2MP) in Max. 1 KM distance and Max. 200 Mbps bandwidth,Point to multi-point: Support up to 16-ch IPC (2MP) in Max. 1 KM distance and Max. 80 Mbps bandwidth within 30°, Max. 1 to 8 PTMP connection Hardware Parameter Network Interface 2 × 1000 Mbps RJ45 ports LED Indicator Power indicator,LAN indicator,Signal intensity indicator SIFIRLA Hardware resetting button Power Supply 12 VDC/1 A Passive PoE Software Function Application Function TDMA,DFS,TPC,IFM,IPM Channel Width 20/40/80 MHz Channel Selection Auto/manual selection Network Protocol NTP (network time synchronization),SADP (auto search for IP address),HTTPS (web management),SSH (debugging) Security Mode WPA2-PSK Security Mechanism Wireless network name hidden Management Method Web,iVMS-4200,HCP Upgrade Web,iVMS-4200,HCP System Log Syslog,Control center information Approval EMC CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020),IC (ICES-003: Issue 7:2020),RCM (AS/NZS CISPR 32: 2015) Safety UL (UL 60950-1),CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017) Chemistry CE-RoHS (2011/65/EU),WEEE (2012/19/EU),Reach (Regulation (EC) No.1907/2006) Radio EN 301 893,EN 300 440,EN 62311,EN 301 489-3,EN 301 489-17,FCC Part 15.247
