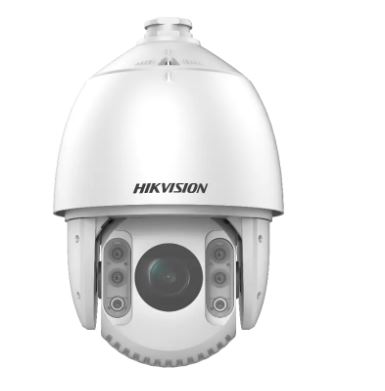

7-inch 4 MP 32X Powered by DarkFighter IR Network Speed Dome 1/2.8" Progressive Scan CMOS High quality imaging with 4 MP resolution Excellent low-light performance with powered-by-DarkFighter technology 32× optical zoom, 16× digital zoom WDR, HLC, BLC, 3D DNR, Defog, Regional Exposure, Regional Focus, Rapid Focus Up to 200 m IR distance Accurate human and vehicle target classification, alarm, and linked tracking based on deep learning algorithm Face capture: Up to 5 faces captured at the same time Specification Kamera Lens Illuminator PTZ Video Audio Smart Features Network Interface General Approval Kamera Image Sensor 1/2.8" progressive scan CMOS Min. Illumination 0 Lux with IR,color: 0.005Lux @ (F1.2,AGC ON) B/W: 0.001Lux @ (F1.2, AGC ON) Shutter Speed 1/1s-1/30000s Slow Shutter yes Focus semi-auto;manual;auto Day & Night ICR Day/Night Switch day, night, auto, scheduled-switch BLC yes WDR 120 dB WDR HLC yes 3D DNR yes Defog yes EIS yes Regional Exposure yes Regional Focus yes Image Settings saturation;brightness;contrast;sharpness White Balance MWB;indoor;outdoor;fluorescent lamp;sodium lamp;ATW;auto;Locked WB;Locked WB Digital Zoom 16x Optical Zoom 32x Privacy Mask up to 24 masks;mosaic mask ;mask color configurable;polygon region SNR >52dB Lens Focal Length 4.8 mm to 153 mm, 32× Optical Zoom Speed approx.4.2s FOV Horizontal field of view: 54.3° to 2° (wide-tele), Vertical field of view: 31.8° to 1.1° (wide-tele), Diagonal field of view: 61.1° to 2.3° (wide-tele) Aperture F1.2 Illuminator IR Distance 200 m PTZ Movement Range (Pan) 360° Movement Range (Tilt) -15° to 90° (auto flip) Pan Speed pan speed: configurable from 0.1° to 160°/s; preset speed: 240°/s Tilt Speed tilt speed: configurable from 0.1° to 120°/s, preset speed 200°/s Proportional Zoom yes Presets 300 Patrol Scan 8 patrols, up to 32 presets for each patrol Pattern Scan 4 pattern scans Power-Off Memory yes Park Action preset;patrol scan;pattern scan;auto scan;tilt scan;random scan;frame scan;panorama scan 3D Positioning yes PTZ Status Display yes Preset Freezing yes Scheduled Task preset;auto scan;random scan;frame scan;patrol scan;pattern scan;panorama scan;tilt scan;dome reboot;dome adjust;aux output Video Max. Resolution 2560 × 1440 Stream Type main stream;sub-stream;third stream Main Stream 50Hz:25fps (2560×1440,1920×1080,1280×960,1280×720) 60Hz: 30fps(2560×1440,1920×1080,1280×960,1280×720) Sub-Stream 50Hz: 25fps (704 × 576, 640 × 480, 352 × 288); 60Hz: 30fps (704 × 480, 640 × 480, 352 × 240) Third Stream 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288); 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240) Video Compression H.265;H.264;MJPEG Video Bit Rate 32 kbps to 16384 kbps H.264 Type ;;;baseline profile;main profile;high profile H.265 Type ;main profile H.264+ yes H.265+ yes SVC yes ROI ;dynamic face tracking;;fixed region;main stream, sub-stream and third stream respectively support eight fixed areas Audio Audio Compression G.711alaw;G.711ulaw;G.722.1;G.726;MP2L2;PCM Audio Bit Rate MP2L2: 32 kbps, 40 kbps, 48 kbps, 56 kbps, 64 kbps, 80 kbps, 96 kbps, 112 kbps, 128 kbps, 144 kbps, 160 kbps;192kbps Audio Sampling Rate MP2L2: 16 kHz, 32 kHz, 48 kHz, PCM: 8 kHz, 16 kHz, 32 kHz, 48 kHz Environment Noise Filtering yes Smart Features Face Capture yes Basic Event audio exception;motion detection;alarm input;alarm output;video tampering alarm;exception Smart Event intrusion detection;line crossing detection;region entrance detection;region exiting detection;unattended baggage detection;object removal detection Smart Tracking manual tracking;event tracking;auto-tracking Smart Record ANR;Dual-VCA Alarm Linkage smart tracking;preset;patrol scan;pattern scan;memory card video recording;alarm output;sending email;notify surveillance center; upload to FTP Network Network Storage NAS (NFS, SMB/ CIFS);;ANR Protocols IPv4/IPv6;HTTP;HTTPS;802.1x;Qos;FTP;SMTP;UPnP;SNMP;DNS;DDNS;NTP;RTSP;RTCP;RTP;TCP/IP;UDP;IGMP;ICMP;DHCP;PPPoE;Bonjour API ISAPI;Hikvision SDK;Hik-Connect;ONVIF (Profile S, Profile G, Profile T);ISUP Simultaneous Live View 20 User/Host 32 Smooth Streaming yes Security Measures Authenticated username and password;MAC address binding;HTTPS encryption;802.1X authenticated access;IP address filter Client iVMS-4200;Hik-Connect Web Browser IE 8 to 11, Chrome 57+, Firefox 52+, Safari 12+ Interface Communication Interface RJ45, self-adaptive 10M/100M Ethernet port On-Board Storage support microSD/microSDHC/microSDXC cards;up to 256 GB Alarm Input 2 alarm inputs Alarm Output 1 alarm output Audio Input 1 audio input, 2.0 to 2.4Vp-p, 1k Ohm±10% Audio Output 1 audio output, line level, impedance: 600 ? General Power 24 VAC, Hi-PoE Power Consumption And Current Max. 42 W, including max. 10 W for heater and max. 18 W for supplement light Operating Conditions humidity lower than 90%RH ;temperature: -30? to 65? (-22°F to 149°F) SIFIRLA yes Demist Demist by heating the glass Material ADC 12, PC, PC+10%GF Dimensions ? 220 mm × 353.4 mm (? 8.66" × 13.91") Approx. 5 kg (11.02 lb.) Approval Protection IP66 Standard, IK10 (excluding glass window) ,6000V Lightning Protection, Surge Protection and Voltage Transient Protection
