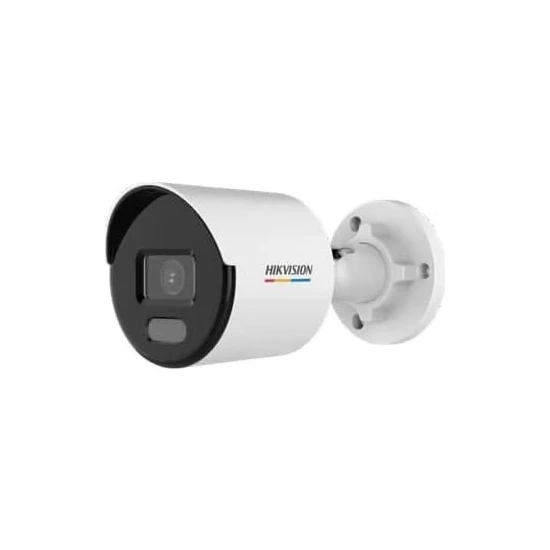

2 MP ColorVu MD 2.0 Fixed Bullet Network Camera High quality imaging with 2 MP resolution 24/7 colorful imaging Support Human and Vehicle Detection Water and dust resistant (IP67) Efficient H.265+ compression technology Support on-board storage up to 256GB (SD card slot)(Optional) Built-in microphone for real-time audio security(Optional) Camera Image Sensor 1/2.8" Progressive Scan CMOS Max. Resolution 1920 × 1080 Min. Illumination Color: 0.001 Lux @ (F1.0, AGC ON),0 Lux with light Shutter Time 1/3 s to 1/100,000 s Day & Night 24/7 color imaging Angle Adjustment Pan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360° Lens Lens Type Fixed focal lens, 2.8 and 4 mm optional Focal Length & FOV 2.8 mm, horizontal FOV: 106°, vertical FOV: 57°, diagonal FOV: 126° 4 mm, horizontal FOV: 83°, vertical FOV: 44°, diagonal FOV: 99° Lens Mount M12 Iris Type Fixed Aperture F1.0 Depth Of Field 2.8 mm: 1.5 m to ? 4 mm: 2.1 m to ? DORI DORI 2.8 mm, D: 44 m, O: 17 m, R: 8 m, I: 4 m 4 mm, D: 56 m, O: 22 m, R: 11 m, I: 5 m Illuminator Supplement Light Type White Light Supplement Light Range Up to 30 m Smart Supplement Light Yes Video Main Stream 50 Hz: 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 30 fps (1920 × 1080, 1280 × 720) Sub-Stream 50 Hz: 25 fps (640 × 480, 640 × 360) 60 Hz: 30 fps (640 × 480, 640 × 360) Video Compression Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG Video Bit Rate 32 Kbps to 8 Mbps H.264 Type Baseline Profile,Main Profile,High Profile H.265 Type Main Profile Bit Rate Control CBR,VBR Region Of Interest (ROI) 1 fixed region(s) for main stream Audio Audio Type -U: Mono sound Environment Noise Filtering -U: Yes Audio Sampling Rate -U: 8 kHz/16 kHz Audio Compression -U: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC Audio Bit Rate -U: 64 Kbps (G.711 ulaw)/64 Kbps (G.711 alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC) Network Protocols TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP Simultaneous Live View Up to 6 channels API Open Network Video Interface (Profile S, Profile T, Profile G (only -U model supports)),ISAPI,SDK User/Host Up to 32 users 3 user levels: administrator, operator, and user Security Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address) Client iVMS-4200,Hik-Connect Web Browser Plug-in required live view: IE 10, IE 11, Local service: Chrome 57.0+, Firefox 52.0+ Image Wide Dynamic Range (WDR) DWDR SNR ? 52 dB Day/Night Switch Day,Night,Auto,Schedule Image Enhancement BLC,HLC,3D DNR Image Settings Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser Privacy Mask 4 programmable polygon privacy masks Interface Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port On-Board Storage -F: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB Built-In Microphone -U: Yes Reset Key -F: Yes Event Basic Event Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception Linkage Upload to FTP/memory card (-F), notify surveillance center, send email, trigger recording (-F), trigger capture General Power 12 VDC ± 25%, 0.4 A, max. 5 W,Ø5.5 mm coaxial power plug, PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 W Material Aluminum alloy body Dimension Ø76.6 mm × 164.4 mm (Ø3 × 6.5\")" Package Dimension 234 mm × 120 mm × 117 mm (9.2" × 4.7" × 4.6") Weight -L: Approx. 405 g (0.9 lb.); -LUF: Approx. 425 g (0.9 lb.) With Package Weight -L: Approx. 630 g (1.4 lb.); -LUF: Approx. 650 g (1.4 lb.) Storage Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) Startup And Operating Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) Language English, Ukrainian General Function Heartbeat,anti-banding,mirror,password protection,password reset via email Approval EMC FCC: 47 CFR Part 15, Subpart B, CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014, RCM: AS/NZS CISPR 32: 2015, KC: KN32: 2015, KN35: 2015 Safety UL: UL 62368-1, CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017, BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005 Environment CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006 Protection IP67: IEC 60529-2013
