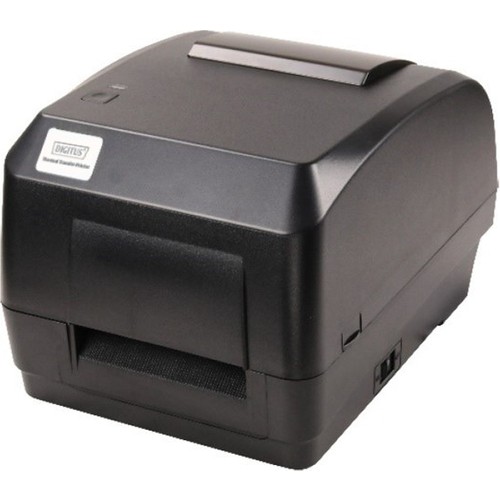

DİGİTUS DA-81020 Thermal + Thermal Transfer Seri + Usb + Ethernet 127 mm/sn 203 dpi Barkod Yazıcı
DİGİTUS DA-81020 Thermal + Thermal Transfer Seri + Usb + Ethernet 127 mm/sn 203 dpi Barkod Yazıcı

Ürün resimleri temsili olup farklılıklar gözetebilir.Her Hakkı Saklıdır!
Etiket Yazıcıları

DİGİTUS DA-81020 Thermal + Thermal Transfer Seri + Usb + Ethernet 127 mm/sn 203 dpi Barkod Yazıcı

Stok Durumu: Merkez 0Adana 0
Mal Kodu: 35214

DİGİTUS DA-81020 Thermal + Thermal Transfer Seri + Usb + Ethernet 127 mm/sn 203 dpi Barkod Yazıcı

image/svg+xml1DATASHEETImagesLabel PrinterDual-motor gear driven designUSB 2.0Print mechanism for kiosk application127 mm (5") per second print speed300 m (984') ribbon supply on a 25.4 mm (1") core (coated side out)200 MHz 32-bit RISC processor with 8 MB SDRAM, 4 MB Flash memoryTSPL-EZ™firmware emulates TPLE and TPLZ languages out of the box.Free bundled labeling software and windows drivers
image/svg+xml2DATASHEETLabel PrinterFeaturesModelDA-81020DA-81021Resolution203 DPI300 DPIPrint methodThermal Transfer/Direct ThermalMax. Print speed127 mm (5") / s max.101.6 mm (4") / s max.Max. Print width108 mm (4.25")104 mm (4.09")Max. Print length2286 mm (90")1016 mm (40")MediaMedia typeContinuous, gap, black mark, fan-fold and punched holeMedia width25.4 mm -118 mm (1.0" -4.6")Media thickness0.06 mm ~ 0.254 mm (2.36 mil ~ 10 mil)Media core diameter25.4 mm ~ 76.2 mm (1"~ 3")Label length10 mm ~ 2.286 mm (0.39" ~ 90")10 mm ~ 1016 mm (0.39" ~ 40")Label roll capacity127 mm (5") OD (External Diameter)Ribbon capacityMax. 300 m Ribbon width110 mmRibbon core inner diameter25.4 mm (1")Performance FeatureProcessor32-bit CPUMemory4 MB Flash Memory, 8 MB SDRAM, SD card reader for Flash memory expansion, up to 4 GBInterfaceStandard: USB+ TF card Optional: Serial/Lan/Parallel/Bluetooth/WI FiSensors?CD Gap sensor ?Cover opening sensor ?Black mark sensor ?Ribbon sensorFonts/Graphics/SymbologiesInternal fonts8 alpha-numeric bitmap fonts, Windows fonts are downloadable from software1D barcodeCode 39, Code 93, Code 128UCC, Code 128 subsets A, B, C, Codabar, lnterleaved 2 of 5, EAN-8,EAN-13,EAN-128, UPC-A, UPC-E, EAN and UPC 2(5) digits add-on, MSI, PLESSEY, POSTNET, China POST, GS1 DataBar, Code 112D barcodePDF-417, Maxicode, DataMatrix, QR code, AztecRotation0°, 90°, 180°, 270°EmulationTSPL, EPL, ZPL, DPLPhysical FeaturesDimensions302.5 mm (D) x 234 mm (W) x 194.8 mm (H)Weight2.6 kgReliabilityPrint head life 30 kmSoftwareDriverWindows / Linux / MacSDKWindows / Android / iOSPower SupplyInputAC 100 –240 V, 1.8 A, 50 –60 HzOutputDC 24 V, 2.5 A, 60 W
image/svg+xml3Label PrinterFeaturesDATASHEETOptionsFactory Options?Built-In Ethernet server (10/100 Mbps)?RS-232C (2400 –115200 bps) communication interface?Centronics communication interfaceDealer Options?External paper roll holder?Bluetooth module (RS-232C transmission interface)?WIFI module?Extensions board for external paper roll holder?CutterEnvironmental ConditionsOperationTemperature: 5 °C ~ 40 °C (41 °F ~ 104 °F)Humidity: 25 % ~ 85 % non-condensingStorageTemperature: -40 °C ~ 60 °C (-40 °F ~ 140 °F)Humidity: 10 % ~ 90 % non-condesning
Baskı Ara Birimi Seri + Usb + Ethernet
Baskı Tipi Thermal
Çözünürlük 203 dpi
Marka DİGİTUS
Yazıcı Tipi Barkod Yazıcı
