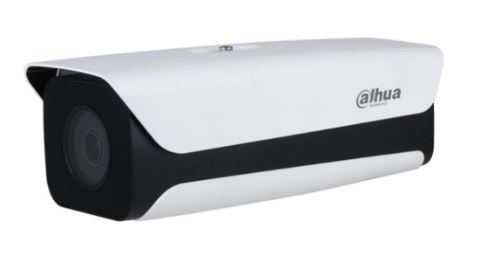

Access ANPR Camera > Adopts high-performance CMOS image sensor and processor for in-depth extraction and analysis of vehicle information 24/7 > Embraces deep learning algorithm for accurate recognition of vehicles without license plate, and vehicle model, vehicle logo, vehicle series, vehicle color, and more > Various signal, data and communication interfaces; supports connecting to extra devices, such as barrier > Built-in LED illuminator for simplified installation > Motorized vari-focal lens, easy for installation and commissioning > Integrated design with low power consumption, and IP67 protection grade DHI-ITC215-PW6M-IRLZF Access ANPR Camera · Adopts high-performance CMOS image sensor and processor for in-depth extraction and analysis of vehicle information 24/7 · Embraces deep learning algorithm for accurate recognition of vehicles without license plate, and vehicle model, vehicle logo, vehicle series, vehicle color, and more · Various signal, data and communication interfaces; supports connecting to extra devices, such as barrier · Built-in LED illuminator for simplified installation · Motorized vari-focal lens, easy for installation and commissioning · Integrated design with low power consumption, and IP67 protection grade DHI-ITC215-PW6M-IRLZF System Overview The short range access ANPR camera adopts high-performance CMOS image sensor and processor for in-depth extraction and analysis of vehicle information 24/7. In addition, it embraces deep learning algorithm for accurate recognition of vehicles without license plate, vehicle model, vehicle logo, vehicle series, vehicle color, and more. The camera is extensively applied to vehicle detection and recognition in scenarios such as parking lots, community roads, and more. The access ANPR kit is extensively applied to vehicle detection and recognition in scenarios such as parking lots, community roads, and more. Functions High-quality image Industry-specific CMOS image sensor with high sensitivity, high SNR and excellent WDR provides lifelike images 24/7. Impressive performance High-performance CPU processor helps extract and analyze information of motor and non-motor vehicles in real-time, providing vehicle feature details for business decision-making. High-level protection Integrated design with low power consumption, and IP67 protection grade, suitable for various harsh environments. Easy installation Built-in LED illuminator and motorized vari-focal lens, providing ease of installation and commissioning. Technical Specification Basic Illuminator Number 6 IR illuminators, brightness adjustable Image Sensor 1/2.8'' CMOS Image Resolution 1920 × 1080 (OSD black strip excluded) Video Resolution Main stream: 1080P (1920 × 1080)/720P (1280 × 720) Sub stream: 720P (1280 × 720)/D1 (704 × 576, 704 × 480)/CIF (352 × 288, 352 × 240) Video Frame Rate PAL: Main stream (1920 × 1080@25fps, 1280 × 720@25fps), sub stream (1280 × 720@25fps, 704 × 576@25fps, 352 × 288@25fps) NTSC: Main stream (1920 × 1080@30fps, 1280 × 720@30fps), sub stream (1280 × 720@30fps, 704 × 408@30fps, 352 × 240@30fps) Bit Rate H.264B: 32Kbps–32768Kbps H.264M: 32Kbps–32768Kbps H.264H: 32Kbps–32768Kbps H.265: 32Kbps–32768Kbps MJPEG: 512Kbps–65536Kbps Video Compression H.264B/H.264M/H.264H/H.265/MJPEG Picture Encoding Format JPEG Noise Reduction 3DNR White Balance Full auto, auto color temperature range, customized color temperature Electronic Shutter Speed 1/50–1/10000, auto or manual WDR 96 db Edge Enhancement Yes Exposure Mode Full auto, customized auto, customized Iris Control Auto iris (W: 1.6–T: 3.3) www.dahuasecurity.com www.dahuasecurity.com Performance Trigger Mode Video detection; I/O coil; video detection and I/O coil Shutter Single shutter Storage 1 built-in TF card port. Supports Kingston 16G, 32G, 64G, and 128G; Dahua 16G, 32G, 64G, and 128G; SanDisk 16G, 32G, 64G, and 128G Image Tampering Prevention Yes. Video/picture can be checked through watermark and verification Field of View Horizontal: 108.1° (W)–30.3° (T); Vertical: 56.3° (W)–17.1° (T); Diagonal: 130.9° (W)–34.8° (T) Illumination Distance 12 m (39.37 ft) Capture Range 3 m–6 m (9.84 ft–19.69 ft) Detected Lane Width 3 m –4 m (9.84 ft–13.12 ft) Min Ambient Illuminance 0.002 Lux. Illuminator is designed with the camera for illumination Max Speed that the Camera Detects 30 km/h Alarm Event Alarm in the case of no storage card, not enough storage space, storage card error, network disconnection, IP conflict, and illegal access Security Authorized username and password, MAC address binding, HTTPS encryption, IEEE 802.1x, and network access control OSD Overlay Supports overlay of time, address (position of channel), lane (number/direction), plate (number and color), vehicle (speed, color, type) Automatic Network Replenishment (ANR) Yes. Platform/FTP Auto Registration Yes Intelligence Vehicle Detection Vehicle capture rate ?99% Vehicle Recognition Supports recognizing vehicle type, vehicle logo, vehicle series, vehicle color, license plate, features of driver and front-seat passenger, and vehicle without plate. Vehicle recognition rate ?95% Video Metadata Yes Intelligent Track Frame Intelligent frame display. Supports displaying vehicle plate and vehicle path Port Lens Mount ?14 Analog Output 1 Network 1 100/1000M Ethernet port (RJ-45) RS-485 2 RS-232 1 Alarm Input 3, optocoupler input (on-off input) Alarm Output 3 ports. 2-channel optocoupler output, 1-channel relay output, which can connect to devices such as barriers Audio Input 1-channel RCA port Audio Output 1-channel RCA port General Power Supply 12V DC, 24V AC, PoE+ Power Consumption <20W Operating Temperature -30°C to +65°C (-22°F to +149 °F) Operating Humidity 10%RH–90%RH (no condensation) Casing Metal and plastic Protection Grade IP67 Dimensions 296.5 mm × 124.3 mm × 107.7 mm (11.67'' × 4.89'' × 4.24'') (L × W × H) Net Weight 1.7 kg (3.75 lb) Gross Weight 2.3 kg (5.07 lb) Installation Installed with bracket Lens 3.2 mm–10.5 mm Certification CE, FCC Yes RoHS Yes Ordering Information Type Model Description 2MP Camera DHI-ITC215-PW6MIRLZF 2MP short range access ANPR camera (850nm built-in IR illuminator) Accessory PFA162 3-dimensional universal mounting bracket www.dahuasecurity.com DHI-ITC215-PW6M-IRLZF Camera Bracket 1/4-20×14.5UNC hexagon socket combination screws Installation www.dahuasecurity.com Dimensions (mm[inch]) 124.3 [4.89] 296.5 [11.67] 107.7 [4.24] www.dahuasecurity.com Rev 001.001 © 2020 Dahua. All rights reserved. Design and specifications are subject to change without notice. Pictures in the document are for reference only, and the actual product shall prevail. DHI-ITC215-PW6M-IRLZF
